Foot Switch


Out of stock

SKU: BLK-FS Category:


[ps2id id=’tab-blk-desk’ target=”/]

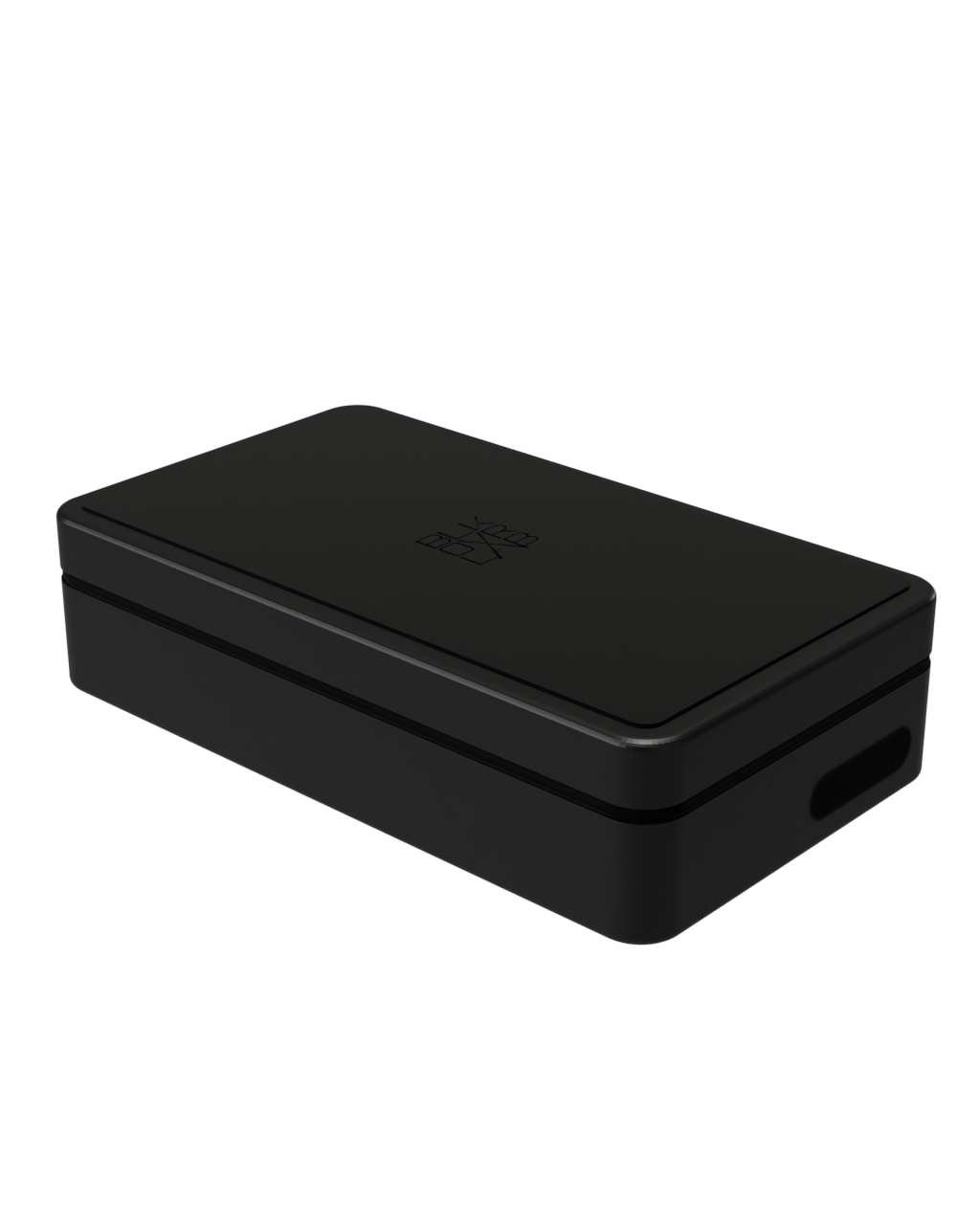

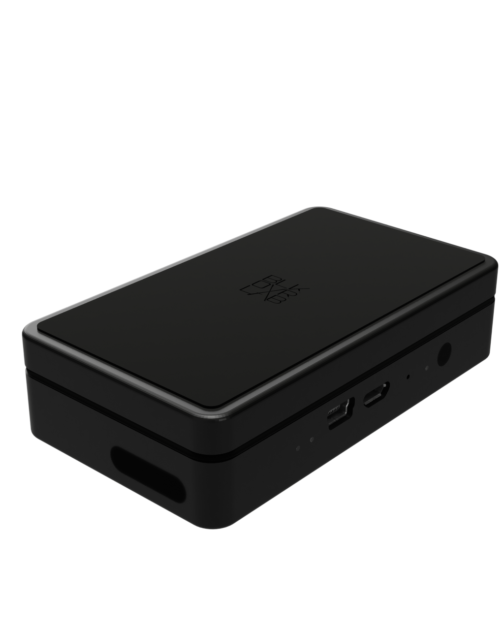

The small wireless Foot Switch is the control and activation unit for the tattoo machine. It has an activation button, LEDs that indicate respectively the battery charge level, the activation of the charge function, the remaining charge level and the power on status, moreover it is equipped with two connectors one for charging and the second for the cable operation if the bluetooth connection is compromised.

The Foot Switch has a pressure sensor which, if pressed, communicates with the control unit via bluetooth and activates the machines. Operating modes and pressure sensitivity can be set on the control unit. The pressure sensitivity setting ensures greater comfort during use.


Color: Black

Technical Data
BlackOverLab Tattoo Foot Switch


Power input
Power consumptions
<13mA (switched on and connected) <2mA (power off) up to 1A (in recharge)
Wired Connections
Mini USB
Micro USB Type B (for recharge)
Wireless Connections
BLE (bluetooth low energy) 4.1
Battery charge duration
Up to 100 hours of continuous use
Charging time
Min 90 min with 1A charger
Maximum load
Operating temperature
-40° … +45°
Relative Humidity
30% … 75%
120 g
Dimensions (W x H x D)
51 x 89 x 22 mm
